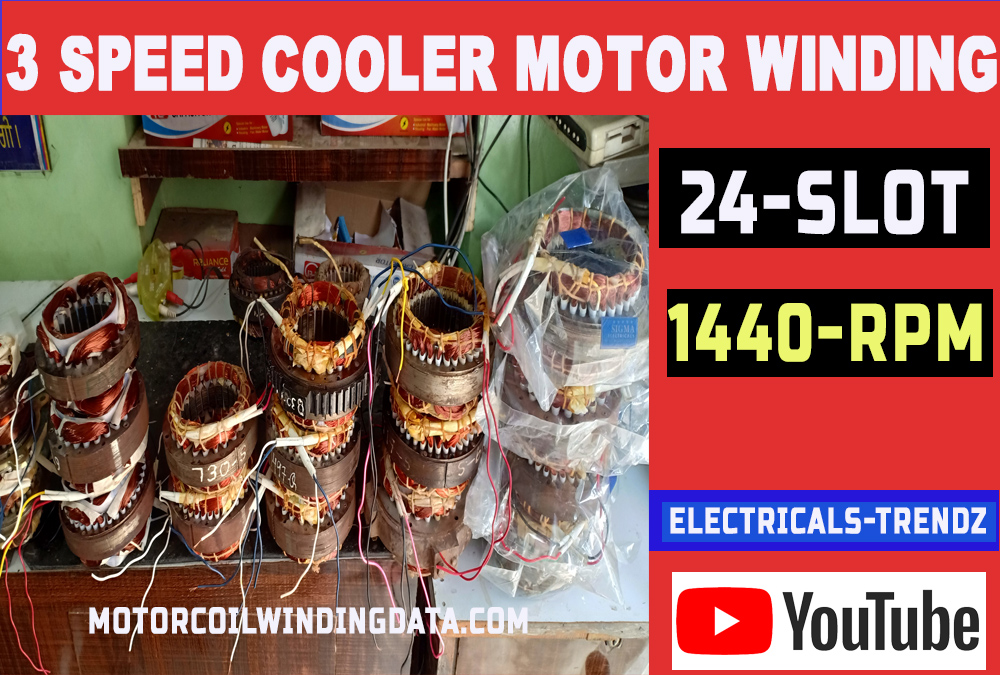

3 Speed Cooler motor winding data in Hindi | three speed winding coil turns | 3 स्पीड वाली कूलर मोटर 💥

Spread the love

3 Speed Cooler motor three-speed winding coil Turns,3 स्पीड वाली कूलर मोटर  (ENGLISH+HINDI )

dear friends in this post we have described its running part.you can watch its starting part video in the description link.

Here we have described How much will be its pitch, which will be the number of the Standard wire gaze, and all about its TURNS how many its slots, it.



3 स्पीड वाली कूलर मोटर की वाइंडिंग का वीडियो जहा पर देखें.



this is its genuine data and it is tested ok.you can use this data for your motor.rewind this motor careful and avoid to scratch the copper wire. after rewinding the motor you can complete motor with its final connection.after connection varnish the motor, and then you can fit the motor carefully.

यह इसका वास्तविक डेटा है और इसे चैक  किया हुआ  है। आप इस डेटा का उपयोग अपनी मोटर के लिए कर सकते हैं। इस मोटर को सावधानी के साथ रिवाइंड करे , और तांबे के तार को खुरचने से बचें। मोटर को फिर से चालू करने के बाद आप अपने अंतिम कनेक्शन को चेक करने  के साथ मोटर को पूरा कर सकते हैं। कनेक्शन करने के बाद मोटर को  वार्निश करे, और फिर आप ध्यान से मोटर फिटिंग कर सकते हैं।



WATTS = 370

CAPACITOR=4 mfd

                          36  स्लॉट कूलर की मोटर का वाइंडिंग वीडियो जहा पर देखें





How to make a three-speed cooler coil in Hindi

36 स्लॉट कुलर मोटर वाइंडिंग सीखें
Learn 36 slot cooler motor winding

Volts  = 220

Watts  = 370

Slot =36

Core length== 1 inch

inner diameter  ==  3″

outer diameter ==5″

Running pitch     1-5 ——1-7 ——- 1-9




3-Speed coils turns

first  swg —-31 —–turns ==40 (speed coil)
next swg  —31—— turns ==60 (speed coil)
next swg —-29——-turns===130 (speed coil)

RUNNING TURNS                1-5 ==150
running turns                        1-7 ==150
running turns                         1-9 ==150

Starting pitch     1–6 —–1—-8 —1—10
Turns  ==160


💥STANDARD WIRE GAUZE==33     (same as Each coil)

Coil length is 25.5 inch both

1-4 pitch me coil (Ek baar ghumao)
1-6  pitch me coil (2 baar ghumao)

watch its starting  winding part here

https://youtu.be/z3ZbJ5tozNA


=========================
