16 Slot Exhaust fan motor winding |Motor Winding

16 Slot1440 rpm Exhaust fan motor 16 slot rewinding data coil and turns

here we have a show
16 Slot Exhaust fan Full Rewinding/Winding Data Running+Starting एग्जास्ट फैन  डाटा  wainding

————————————————–

16 Slot Exhaust fan motor winding Data:-

• Core length   6 SOOT
• slot.   16
• Rpm 1440
• 4 pole motor winding./REWINDING
• capacitor 2.5 mfd in 220 volt to 240 volt.
• Running pitch 1-4

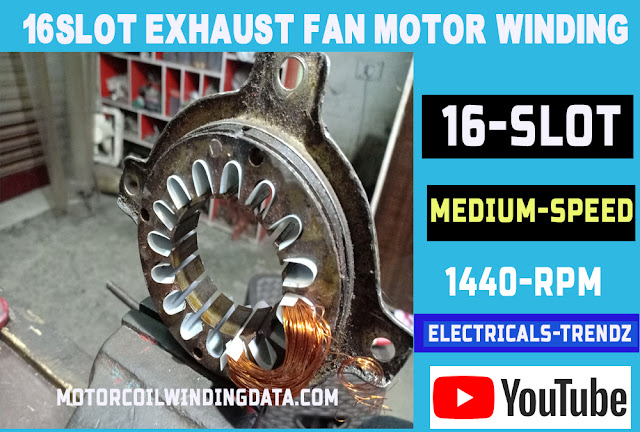

16 Slot Exhaust fan motor 16 slot 1440 RPM rewinding data

• RUNNING WINDING = swg 35
• STARTING coil.  1-4.
• Turn   200*3=600
• Starting pitch   1-4
• Swg 35
• Total coils 8 pc
• 4 coils in running
•       and
• 4 coils in. starting
• Coil size is = 17 inch
• (This is single speeds winding motor.)
• Connection = Normal



———————————————————
