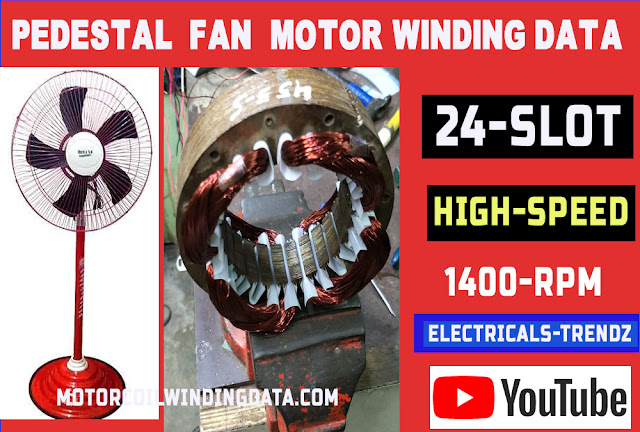

Pedestal Fan Motor Winding Data In Hindi | motor coil turn data

Spread the love

Pedestal Fan Motor Winding Data coil and turns,फर्राटा पंखा कनेक्शन Pedestal fan is also like as Cooler Fan Motor In This Article I m Give You The Full Winding Data Of Pedestal Fan Motor Winding. We Are Also Cover Pedestal Fan Motor Winding Data In Hindi

  Pedestal Fan Motor Stamping Details?

  • Core length  = 1 inch
  • INNER DIAMETER = 2″4
  • OUTER  =  4″2
  • Slot.   24
  • watts 330
  • VOLTS  – 220
  • PHASE = 1 PHASE
  • Rpm 1440
  • 4 pole motor winding.
  • capacitor 4 mfd in 220 volts to 240 volts.
  • 5 mfd in the down voltage area.

Pedestal Fan Motor Running Winding Data

  • Running pitch 1-4 and 1-6
  • Coil.        1-4 (1 बार घुमाना है )
  • Coil.        1-6( 2 बार घुमाना है )
  • Coil पिच  1-4.        1-6
  • Turn       160       320
  • Swg तार नंबर   = 31
  • Coil size is 25.inch

WATCH ITS STARTING WINDING HERE

    पेडस्टल फेन मोटर स्टार्टिंग वाइंडिंग डाटा

Starting pitch   1-4 and. 1-6

Coil पिच          1-4.      1-6

Turn ( टर्न )    160.      320

Swg तार नंबर  33

Total coils 8pc

4 coils in running

4 coils in. starting

Coil size is 25.inch

(This is single speeds winding motor.)

                    फर्राटा पंखा कनेक्शन कैसे करें?

Connection = Normal

 PEDESTAL FAN CONNECTION
