split ac motor rewinding 960 rpm slow speed 6 pole motor winding

Spread the love

Split AC Outdoor Motor Winding data 960 rpm 6+6 coils

HERE IS THE FULL WINDING DATA OF THIS MOTOR


SPLIT AC MOTOR FULL VIDEO IS HERE




core length   1 inch

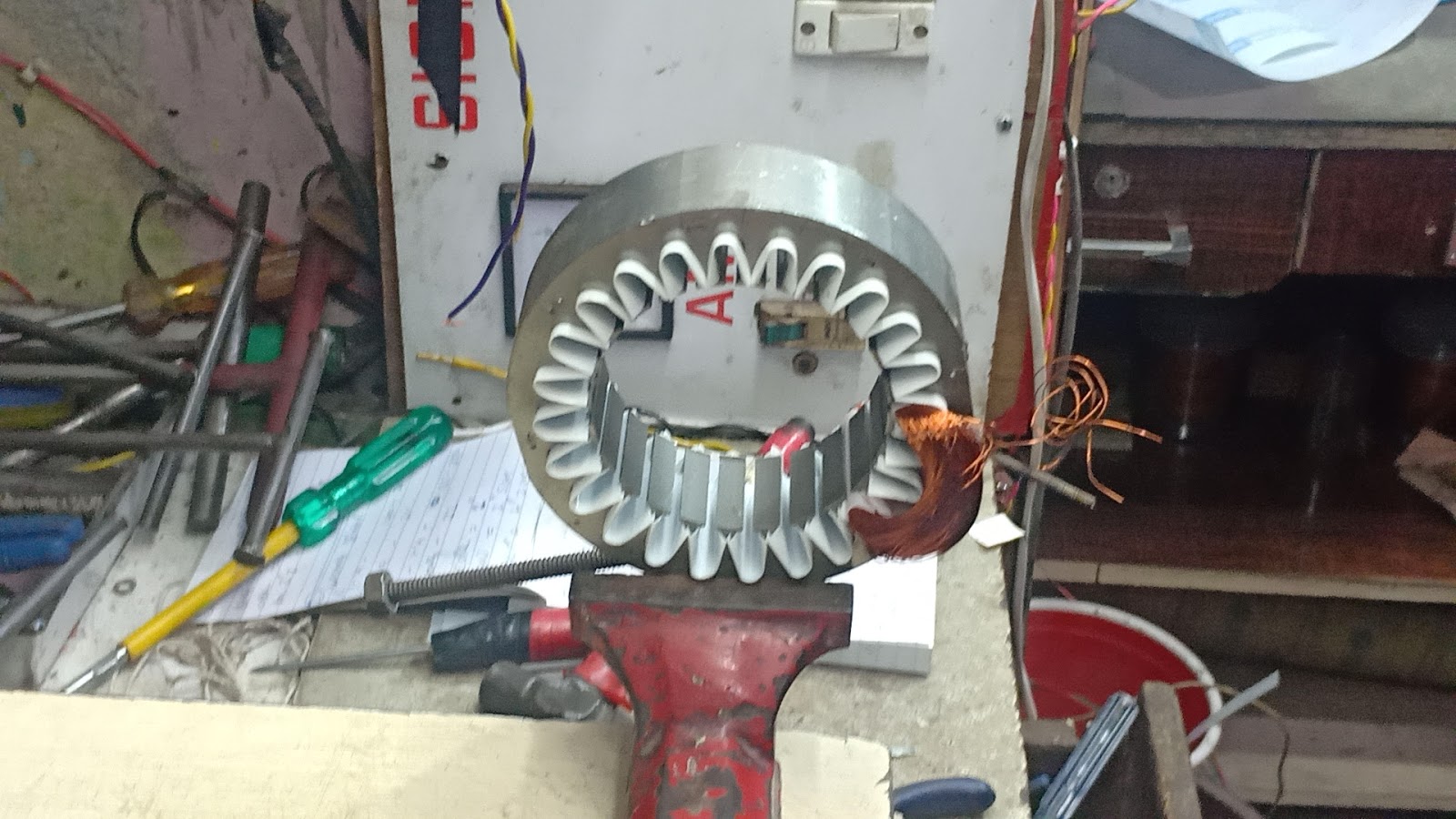

slot.   24
watts
Rpm 960
6 pole motor winding.
capacitor -AS RECOMMENDED BY COMPANY
5 mfd in down voltage area.
SPLIT AC MOTOR WINDING DATA IN DETAIL IS HERE

Running pitch 1-4
coil.     1-4 (3 baar gumana)

swg 35
coil.  1-4.
Turn   190  (570 IN EACH COIL)
—————————————-
Starting pitch   1-4
swg 36
coil Pitch  1-4.
STARTING Turn 200 (TOTAL TURNS=600)

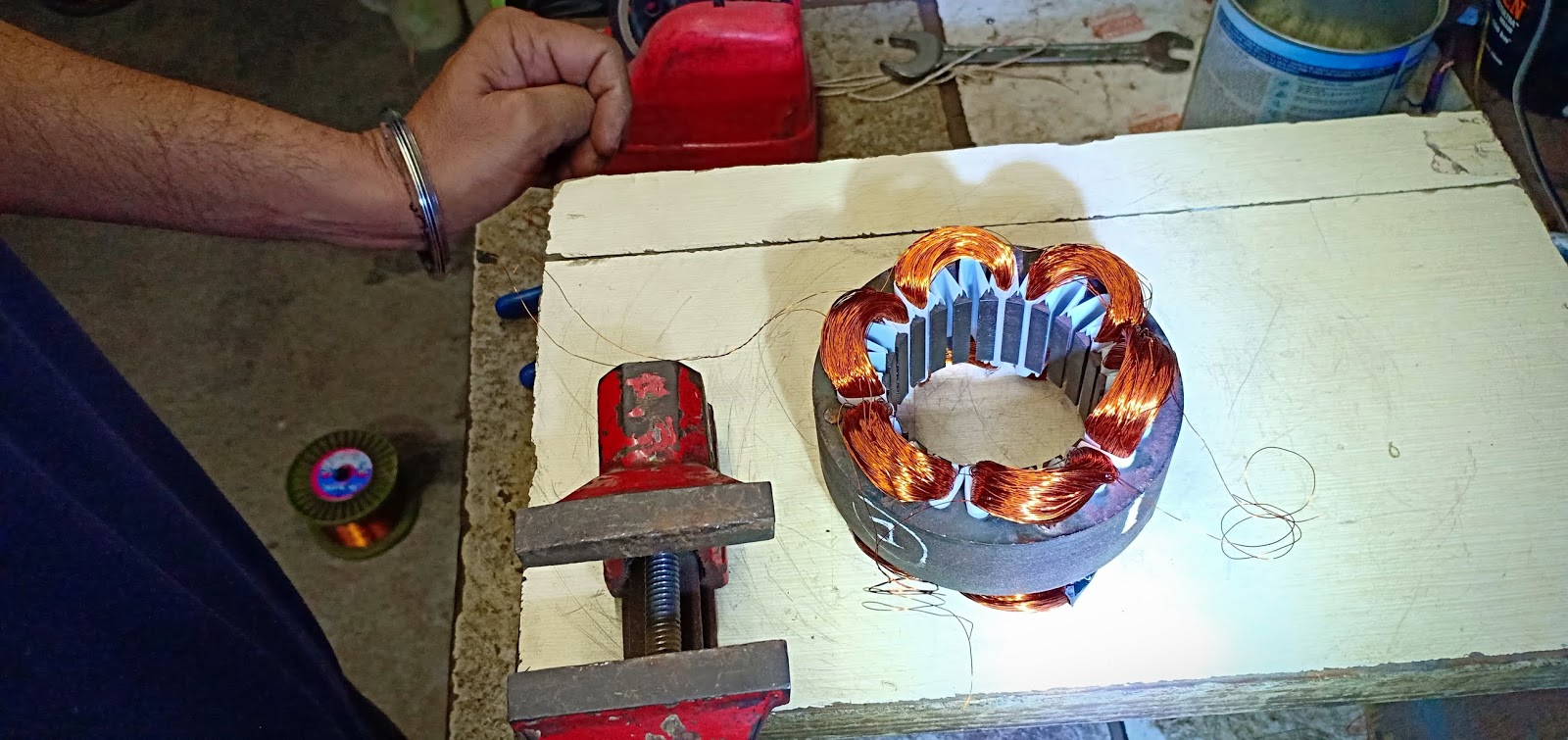

Total coils 12 pc
6 coils in running
      and
6 coils in. starting
coil size is =19 inch
(This is single speeds winding motor.)
Connection = Normal
============================================================
