Three Speed Cooler motor winding data|36 Slot cooler motor winding

Spread the love

दोस्तों जहां पर इस आर्टिकल में हमने बताया है कि आप 36 slot cooler motor की वाइंडिंग किस तरह से कर सकते हैं कितनी इस मोटर की Coil Pitch क्रया हेगी कितनी इस मोटर में कॉइल्स टर्न डालेंगी इस मोटर की वाइंडिंग करते समय हमें तार नंबर कौन सा डालना पड़ेगा और पोस्ट के अंत में हमने एक वीडियो का लिंक भी आपको दिया गया है जिससे आप इस मोटर की वाइंडिंग के बारे में विस्तार से जानकारी ले सकते हैं

Cooler fan motor winding data

Three Speed Cooler motor winding data  three speed winding coil turns data. cooler fan motor winding data

 dear friends in this post we have describe its running part.you can watch its starting part video in description link.

Here we have describe How much will be its pitch, which will be the number of the Standard wire gaze,and all about its TURNS how many its slots ,it .

this is its genuine data and it is tested OK you can use this data for your motor.rewind this motor careful,and avoid to scratch the copper wire.after rewind the motor you can complete motor with its final connection.after connection varnish the motor,and then you can fitting the motor carefully.

यह इसका वास्तविक डेटा है और इसे चैक  किया हुआ  है। आप इस डेटा का उपयोग अपनी मोटर के लिए कर सकते हैं। इस मोटर को सावधानी के साथ रिवाइंड करे , और तांबे के तार को खुरचने से बचें। मोटर को फिर से चालू करने के बाद आप अपने अंतिम कनेक्शन को चेक करने  के साथ मोटर को पूरा कर सकते हैं। कनेक्शन करने के बाद मोटर को  वार्निश करे, और फिर आप ध्यान से मोटर फिटिंग कर सकते हैं।

Three Speed Cooler motor three-speed winding coil Turns

  • 36 स्लॉट कुलर मोटर वाइंडिंग सीखें
  • Learn 36 slot cooler motor winding
  • WATTS = 370
  • CAPACITOR=4 mfd

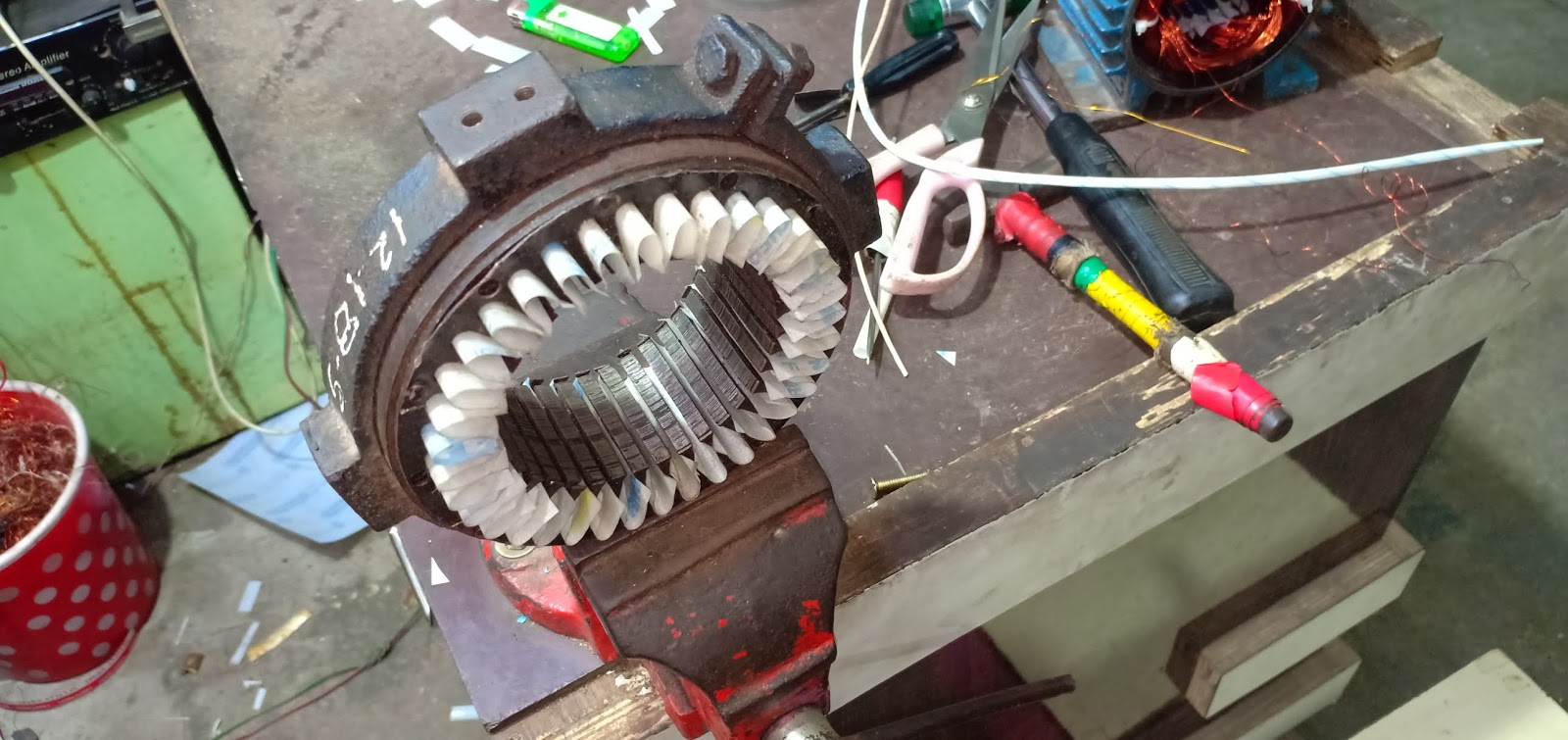

  • Slot =36
  • Core length== 1 inch
  • Inner diameter  ==  3″
  • Outer diameter ==5″

Running Winding Data:-

  • Running Pitch     1–5 —–1—-7 —1—9
  • RUNNING TURNS                1-5 ==150
    running turns                        1-7 ==150
    running turns                         1-9 ==150

Starting Winding Data:-

  • Starting Pitch     1–10 —–1—-8 —1—10
  • Turns  ==           160           320          160
  • Swg Wire no ====33     (same as Each coil)
  • Connection =normal
  • Coil length is 25.5 inch both
  • 1-4 pitch me coil (Ek baar ghumao)
  • 1-6  pitch me coil (2 baar ghumao)
